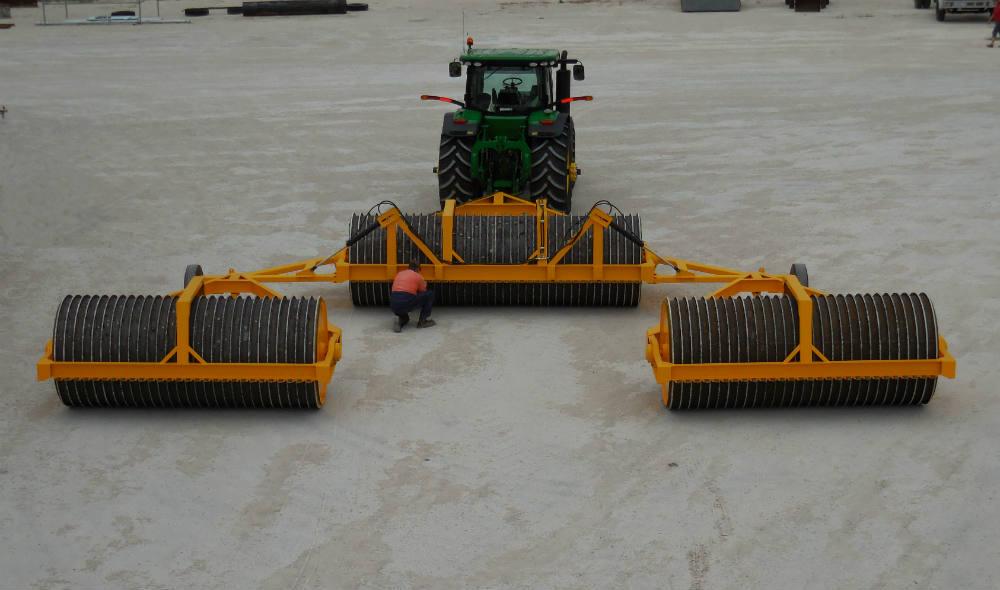

3 Gang Roller Series
Ribbed 5ft
- Barrel: 25mm or 32mm thick
- Bearings: Double row barrel roller bearings
- Internal baffles: 2 x 25mm plate
- Configuration:
- 1 x 16ft Lead Roller
- 2 x 12ft Wing Rollers - Frame:
Lead Roller: 250 Channel Frame
Wing Rollers: 200 Channel Frame - Ribs: 50x20mm FMS or 50x50x8mm Angle Iron
- Scrapers:
- Adjustable for use with flat ribs – Adjustable scrapers set on the underside or rear chassis to remove any obstructions in the ribs
- Fixed scrapers for use with angle iron robs – 25mm reo bar welded into place - HD Stub Axles: Bolt on 110 or 127mm 4140 Shaft
Optional Extras:
- Hard facing welded onto each flat rib
- Oversize sign mounted at the rear
- Delivery with our drop deck trailer – Delivery is to be discussed at ordering, permits can be obtained if required & rollers delivers to the customer (most requiring 2 pilot vehicles
Smooth 3 Gang Series
- Barrel: 25mm or 32mm thick
- Diameter: 4ft – 6ft available
- Bearings: Double row barrel roller bearings
- Internal Baffles: 2 x 25mm plate
- End Plates: 32mm end plates
- Frame:
- Lead Roller: 250 Channel Frame
- Wind Rollers: 180 Channel Frame - HD Stub Axles: Bolt on 100, 110 or 127mm 4140 shaft
